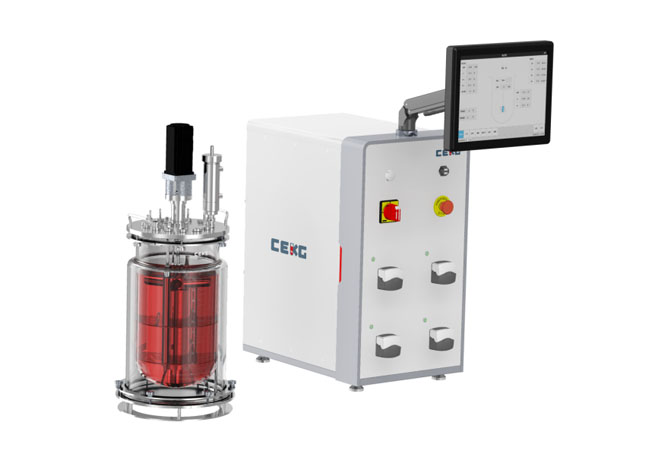

    SKC320 BIOREACTOR

    SKC320 BIOREACTOR

    Adopts brand components from domestic and abroad. The equipment has a neat appearance, easy to clean and sterilize, concise human-machine interface, stable process control and convenient operation.
    Share:
    Inquiry
    Contact Us

    Adopts brand components from domestic and abroad. The equipment has a neat appearance, easy to clean and sterilize, concise human-machine interface, stable process control and convenient operation.

    It is a highly versatile bioreactor, compatible with most mainstream cell culture stirring blades and bioreactors.

    01 Fabric carrier adherent cell culture, R&D and production of extracellular product.

    02 Suspended cell culture for suspended cell culture.

    03 Micro-carrier adherent cell culture for adherent cells.

    04 Batch and fed batch available.

    Vessel volume

    Total volume

    2.5L

    5.0L

    7.5L

    14.0L

    Working volume

    0.75L-1.95L

    1.25-3.75L

    2.0-5.5L

    3.0L-10.5L

    Headplate connector

    Qty.*Size

    1*6.35mm

    9*PG13.5mm

    3*6.35mm

    10*PG13.5mm 1*19mm



    3*6.35mm

    12*PG13.5mm

    1*19mm

    3*6.35mm

    12*PG13.5mm

    1*19mm

    Control system

    Hardware※

    Siemens PLC, 12-inch Siemens touch screen, 4 pumps, Ethernet interface, USB interface, load cell optional

    Temperature control

    Water jacket, heater PID automatic control, Pt100 sensor, accuracy ±0.1℃, temperature control range 8-45℃ above coolant temperature, Max.60℃

    Agitating system

    Agitating form

    Upper agitating, magnetic-driven

    Impeller※

    Pitched-blade impeller/basket impeller/cell lift impeller/spin filter impeller optional

    Agitating speed

    Speed range:25-500RPM, accuracy: ±1RPM   (excluding 14.0L)

    25-150RPM（14.0L）

    Exhaust

    Condensate/filter

    Stainless steel/0.2μm air filter

    Gas※

    Control system

    1 or 4 thermal mass flow controllers optional

    Sparge ※

    Circinate. Micro and macro sparge optional

    pH※

    2-12, PID control cascaded with pumps/gas flow. ISM probe optional

    DO※

    0-200%, PID control cascaded by agitation/pumps/gas flow. ISM probe/ optical probe optional

    Pumps※

    4 fixed-speed pumps for addition/acid/base/anti-foam etc., speed 25PRM,  25PRM /100PRM fixed-speed or variable-speed pumps optional.

    Utilities

    Water/gas

    Air/O2/N2/CO2, 10PSIG

    Power supply

    AC220v, 50/60Hz, 10A
